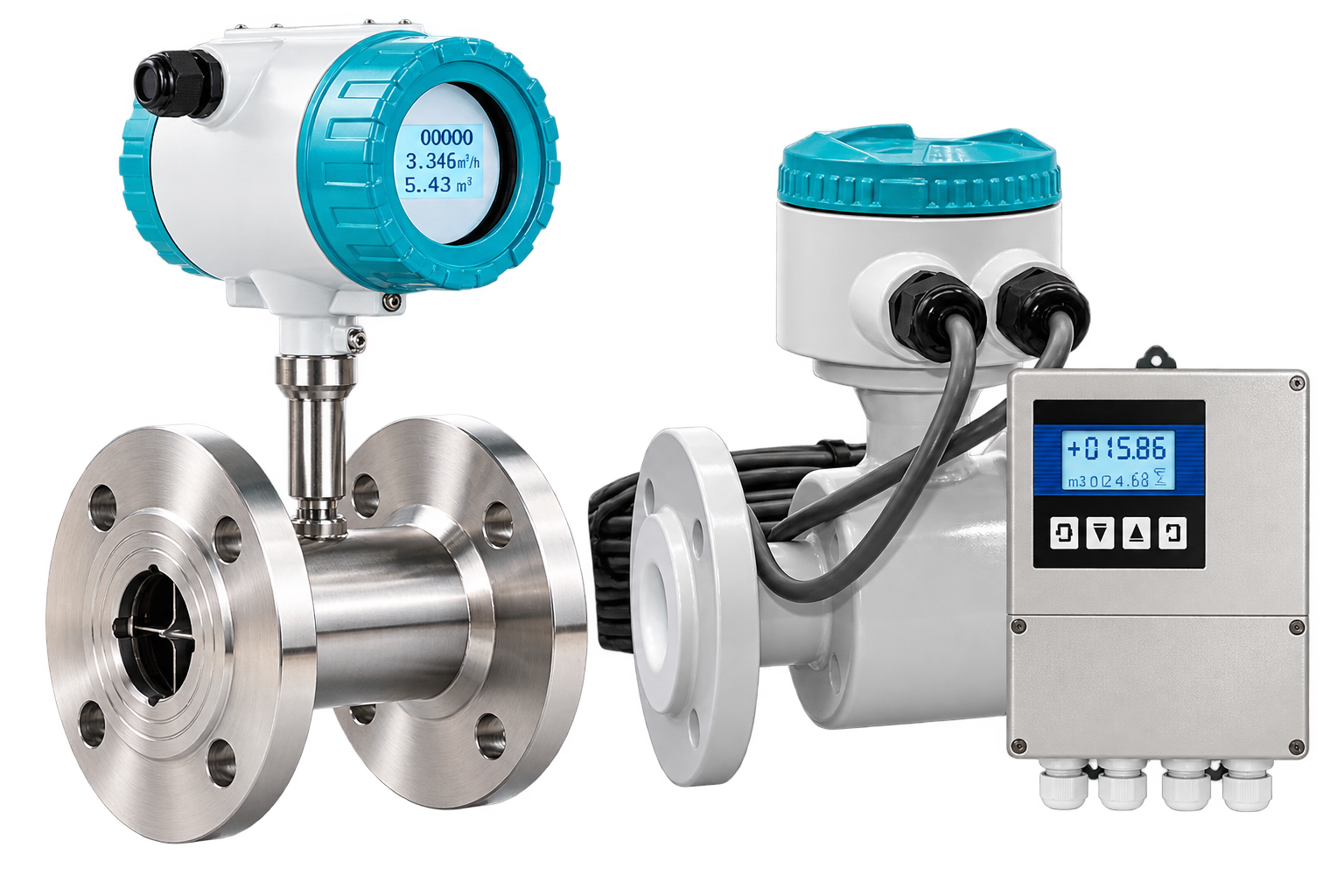

Electromagnetic Flow Meter
Model
Electromagnetic Flow Meter
Electromagnetic flowmeter terdiri dari dua bagian, yaitu sensor dan converter. Produk ini menggunakan prinsip Faraday’s law of electromagnetic induction dan digunakan untuk mengukur volume flow dari conductive liquid dengan conductivity lebih dari 20 uS/cm. Selain dapat digunakan untuk mengukur volume flow dari conductive liquid secara umum, alat ini juga dapat digunakan untuk mengukur strong acid, alkali, dan strong corrosive liquids lainnya, serta mud, pulp, dan liquid-solid two-phase suspension dengan uniform volume flow.
INFORMASI PRODUK
Deskripsi Produk
| Size | DN3-DN3000mm (1/8”~120”) |
| Accuracy | ±0.5% of reading, ±0.3% and ±0.2% optional, velocity >0.3 m/s |
| Conductivity | Normal liquid >20 uS/cm, Slurry liquid>5 uS/cm |
| Protection Grade | IP65, IP68 |
| Electrode | SS316L, Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinoiridium |
| Power Supply | AC85~250V, DC20V~36V |
| Power Consumption | <20W |
| Communication | RS485/Modbus, Hart, Profitbus |
| Display | LCD Display, 128X128mm, three lines, 4 internal push buttons |
| Ambient Temperature | -20°C~60°C |
| Relative Humidity | 5%~95% |
| Liner Material | Neoprene(Rubber), PTFE, PFA, F46, Polyurethane |
| Velocity | 0.1 m/s~15 m/s |
| Explosion-proof | Exd IIB T6 Gb |
| Nominal Pressure | 4.0 MPa (DN3-DN150), 1.6 MPa (DN200-DN600), 1.0 MPa (DN700-DN1000), 0.6 MPa (DN1200-DN3000) |
| Frequency Output | 1~5000 Hz |
| Language | English, Chinese, other languages are available |
| Flange Standard | EN1092-1 PN10, PN16, PN25, PN40; ANSI BS16.5 Class 150, 300, 600; JIS2220 10K, 20K, 40; AS2129 Table D, Table E; AS4087 PN16, PN21, PN35 |
| Exciting Current | 125mA, 187mA, 250mA |
| Exciting Frequency | 3.12Hz, 4.16Hz, 6.25Hz, 12.5Hz, 25Hz, 30Hz |
| Material | Measuring Tube: Stainless Steel 304; Flange: Carbon Steel (standard); Stainless Steel 304 (optional); Stainless Steel 316 (optional) |
| Straight Pipe | Inlet Path Min. 10D, Outlet Path Min. 5D |
| Signal Output | 4~20 mA, pulse |
